Bär Cargolift – BC 1000 F2

The simple and flexible alternative

Capacity 1,000kg Load Centre 600mm

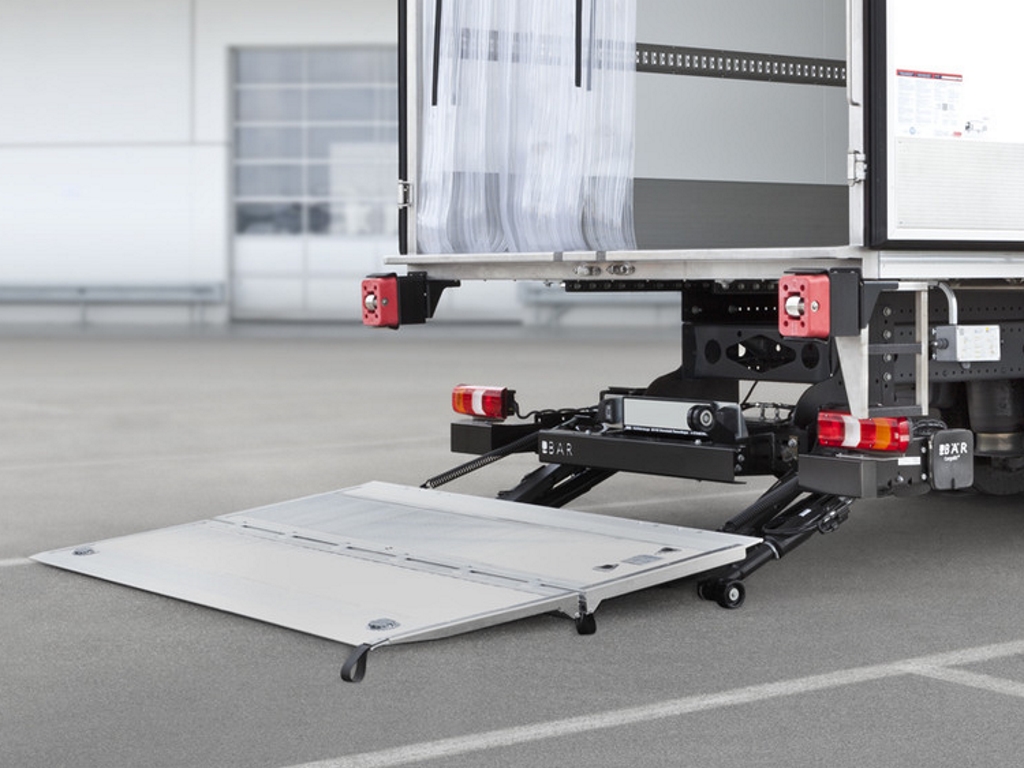

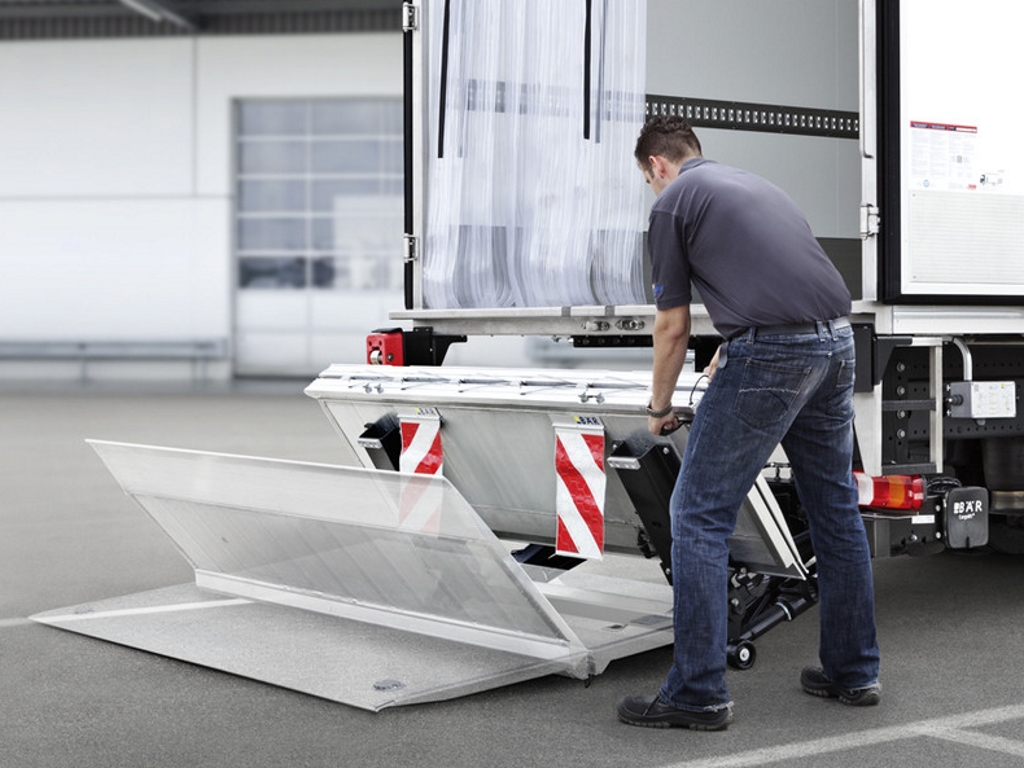

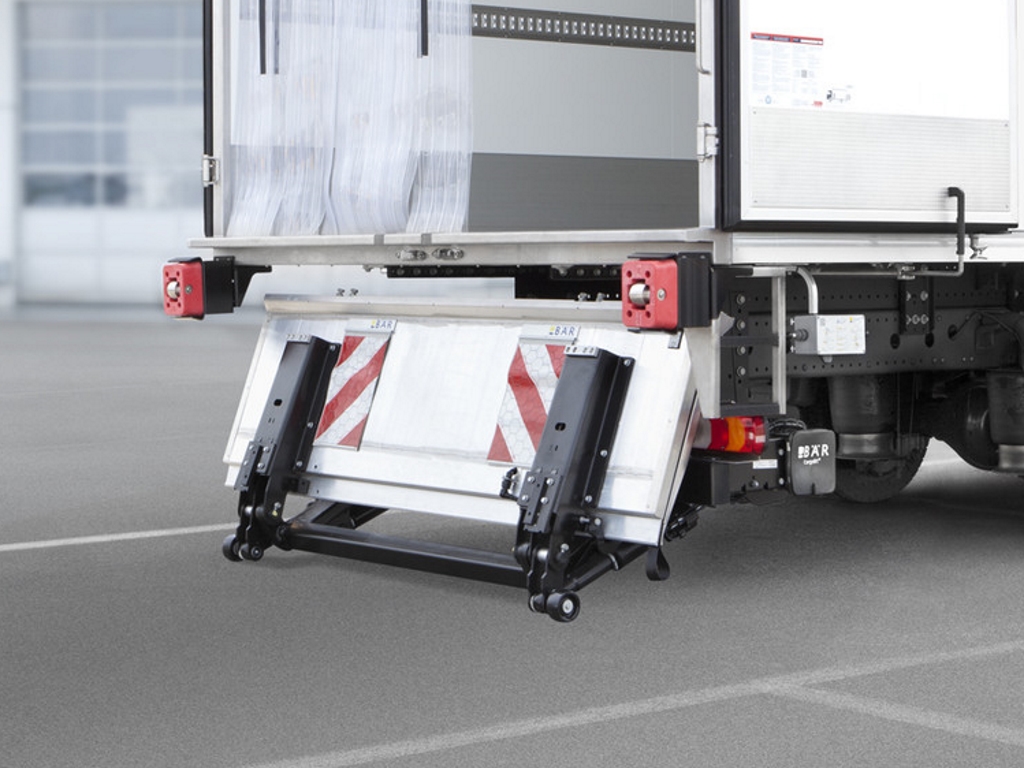

The manually unfolding BC 1000 F2 is the ideal solution when frequent loading and unloading at ramps is needed.

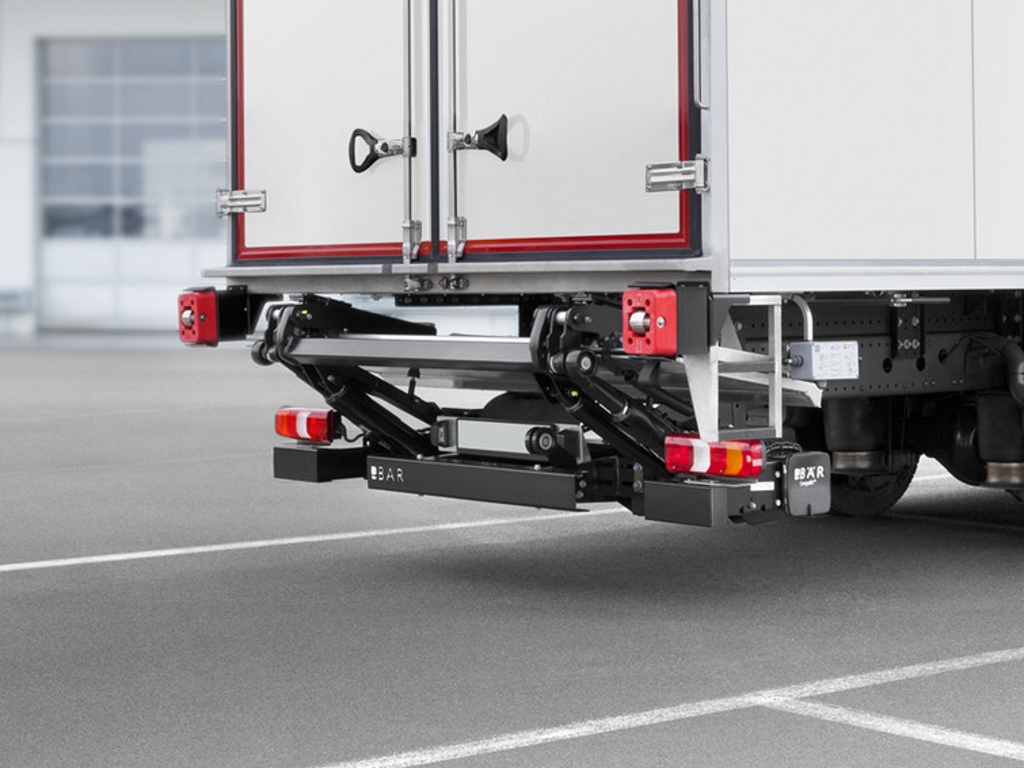

When stowed away this Cargolift disappears out of sight under the vehicle. When needed however it is quickly available for use.

the BC 1000 F2 comes as standard with foot controls and plug in hand control.

Installed weight 342kg

Categories: ,

Description

BC 1000 F2 – Technical specifications

Load centre:

600mm

Load capacity:

1,000kg

Platform size:

2,250mm wide x 1,210mm long

Height f min / max:

985mm / 1275mm

Clearance B min:

1,020mm

Features

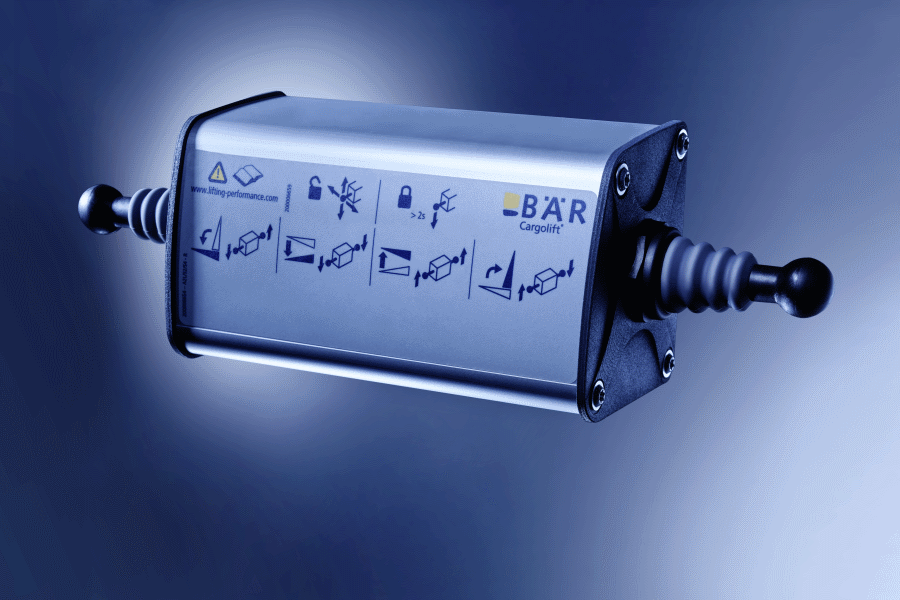

CONTROL BOX EVO

Bär Cargolifts next generation control box – affectionately referred to internally as “EVO”. Reduced to the essentials, with a focus on a logical process, tried and tested many times over in tough use.

  • IP65 rated lever switch

BÄR FOOT CONTROL

The Bär Foot Control offers simple operation by means of two foot switches.

BÄR CARGOFLASH

Durable CargoFlash LED flashing light with high light intensity and very good sidewise emission with low current consumption.

POWER PACK PROTECTION

Power pack and control unit are safely protected in the beam.

Motor fitted with thermal circuit breaker to protect against overheating and fire.

BA ALUMINIUM PLATFORMS

Stable = heavy – not with Bär! Because Bär Cargolift has been using aluminium platforms since the company’s foundation – developed in-house and also produced in-house at the Heilbronn site since 2004.

EBC CONTROLLER PRO

Bär Cargolifts next generation controller. The eBC Controller PRO includes the following improvements:

  • Simple emergency operation of the four basic functions by push button

  • Bär CargoCheck connection via USB cable
